Configure this product
System height
The maximum height in your campervan determines which system height you can choose.
 | | |
610 mm | 660 mm | 710 mm |
Installation height
Does your garage have a sill at the door opening? Enter the height of the sill. We’ll adjust the system height free of charge, so the system still fits through the door opening.

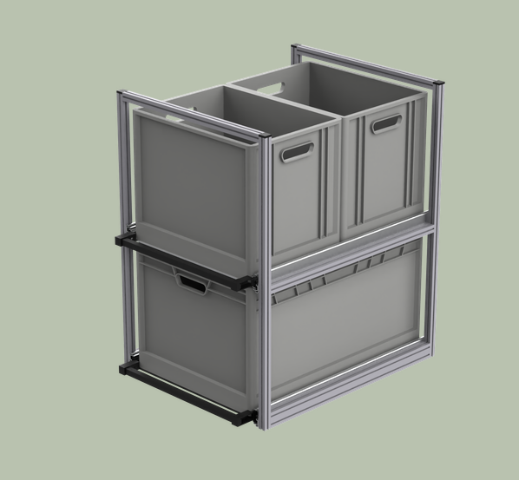

Box layout
The boxes come as shown in the image by default. Would you like a different layout? Please let us know in the comments field.
Dimensions & specifications
All dimensions are the external dimensions of the system.
Specification | Size |
Length | 1250 mm |
Width | 690 mm |
Height | 610 mm / 660 mm / 710 mm* |
*Height depends on the chosen version.
Drawers: 2 heavy-duty pull-out drawers
Locking: automatic locking in both the closed and extended position
Maximum load: 100 kg per drawer
Included: floor mounting kit
Delivery & installation
Every system is delivered fully assembled. All you need to do is fix it in your campervan, using the included instructions and mounting kit.
Will this fit my garage?
Compare the external dimensions of the system with the available space in your garage and with the door opening. Also take obstacles into account, such as a sill, cable duct or wheel arch, and leave enough room to pull out the drawers.
Tip: measure at several points and with the doors closed. Your garage may be roomier inside than the door opening suggests.
Personal advise?
Do you have questions about the system, or would you like advice on which system suits you best? Get in touch with us. We’re happy to help.
